501r01

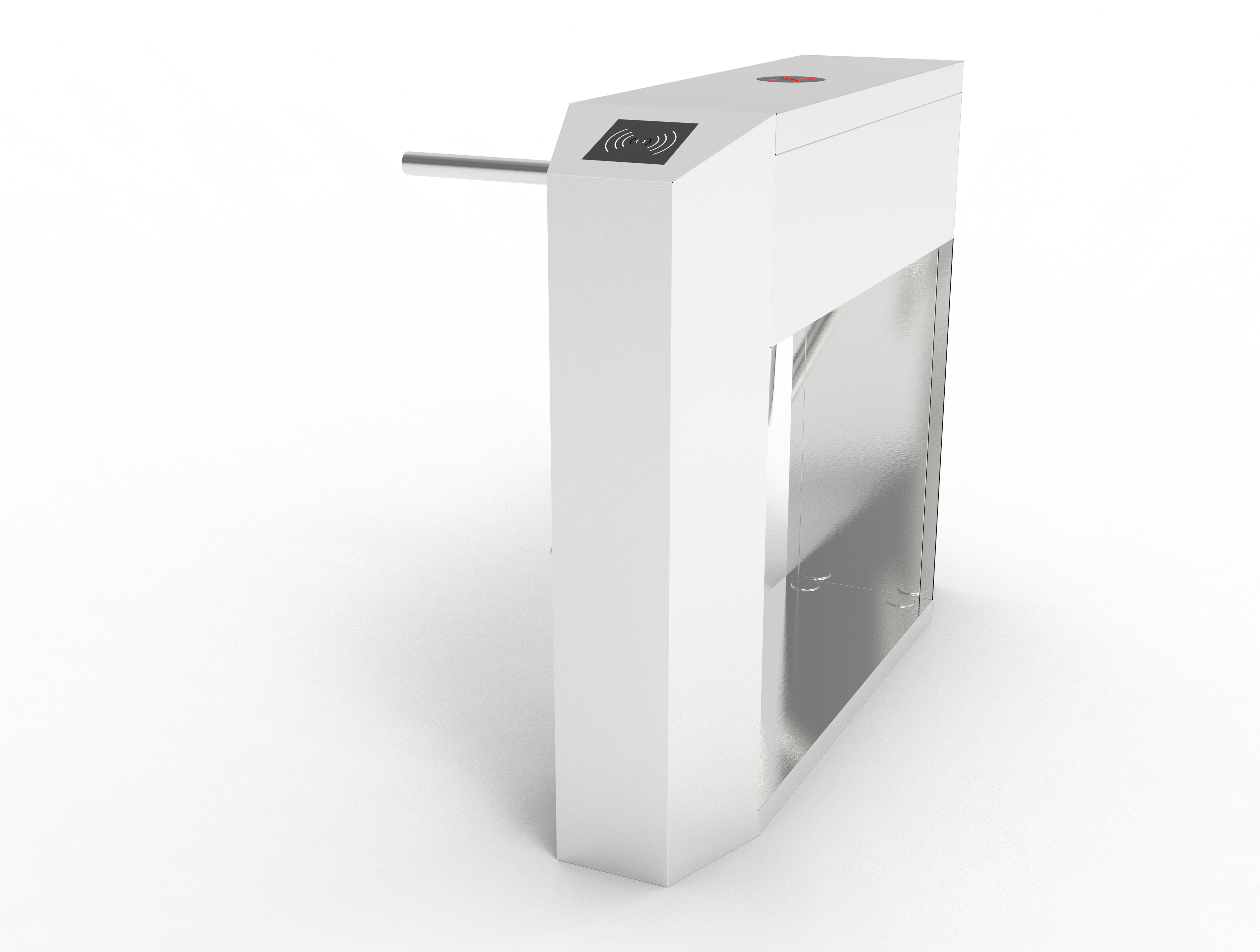

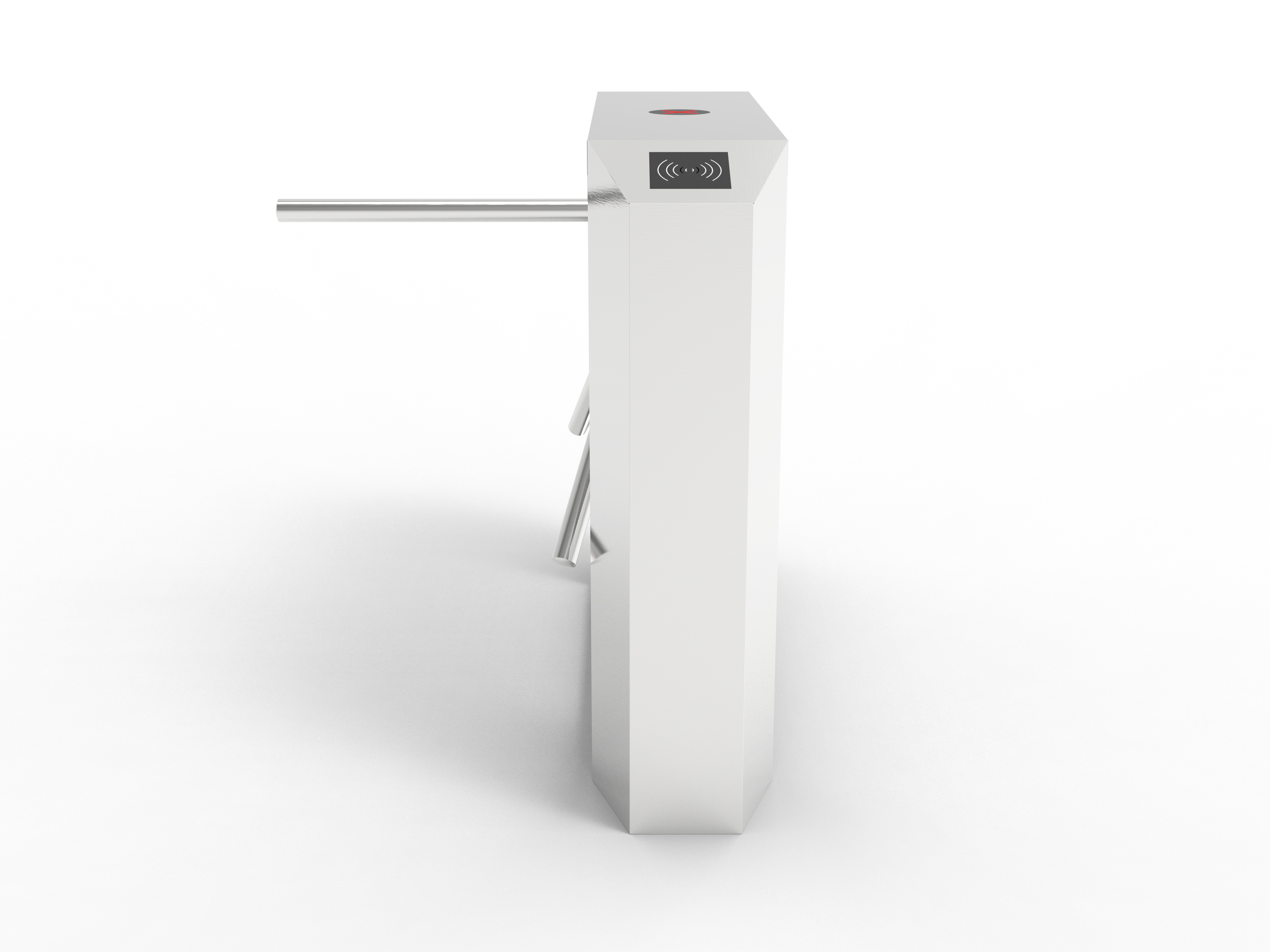

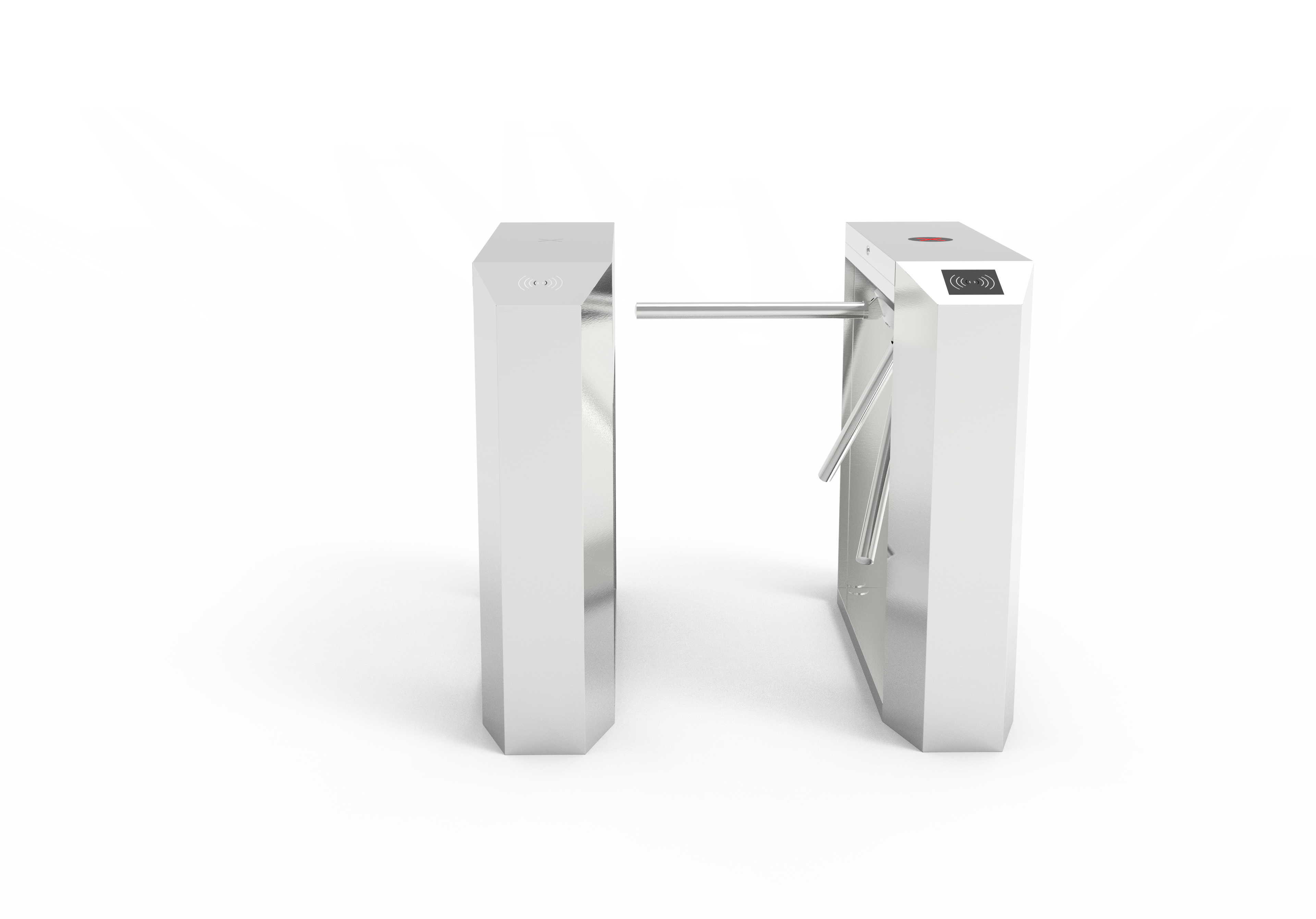

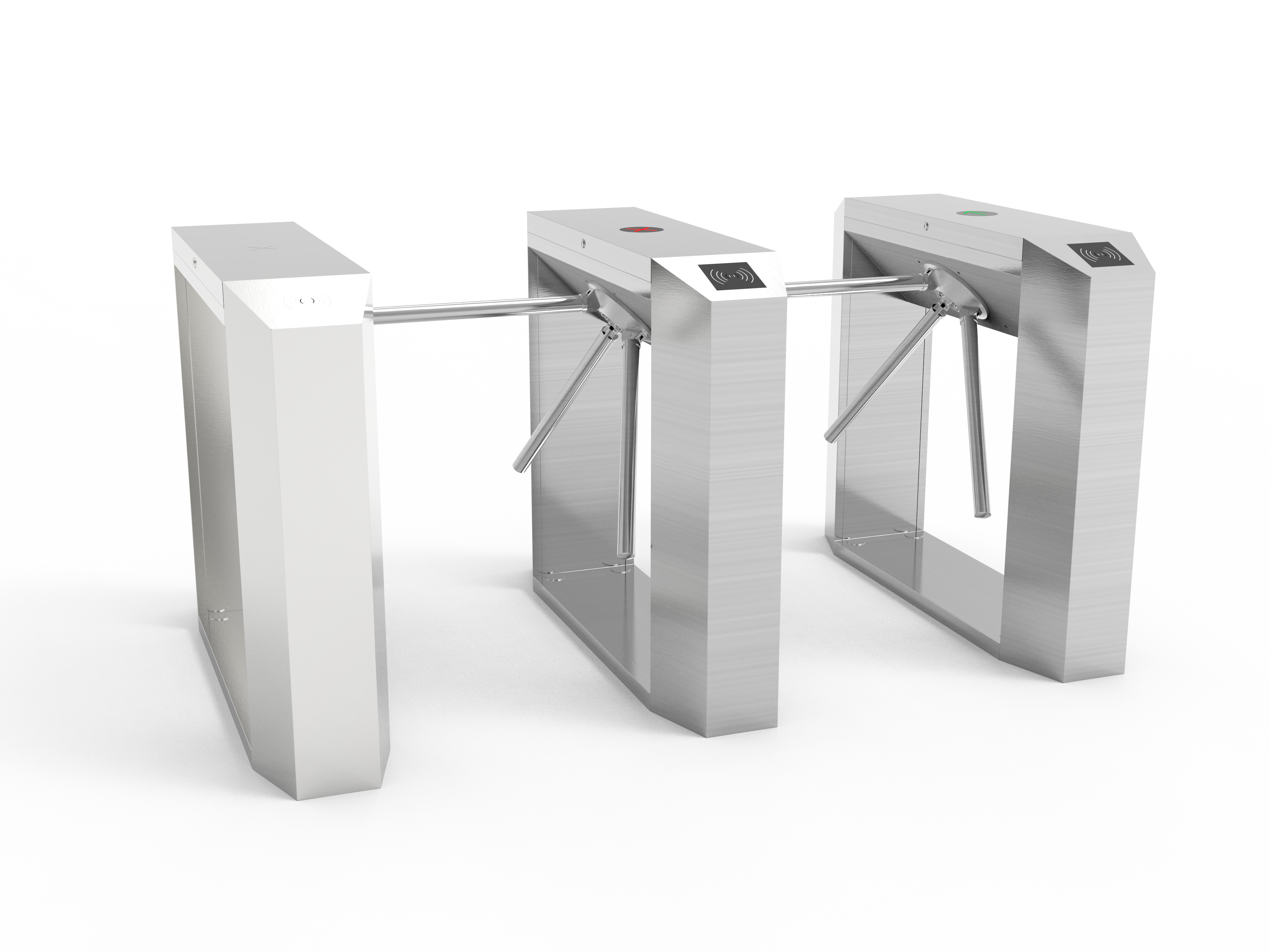

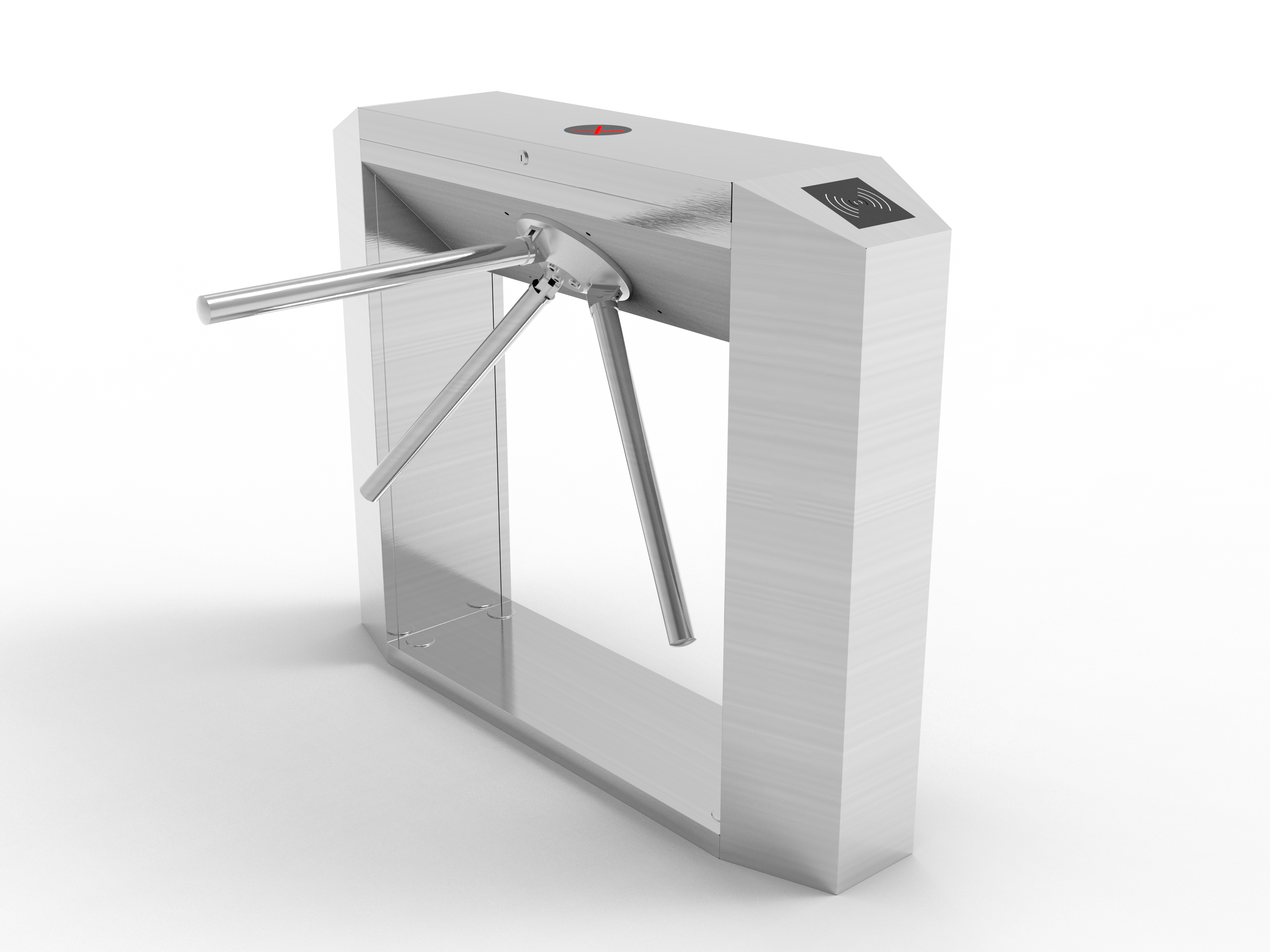

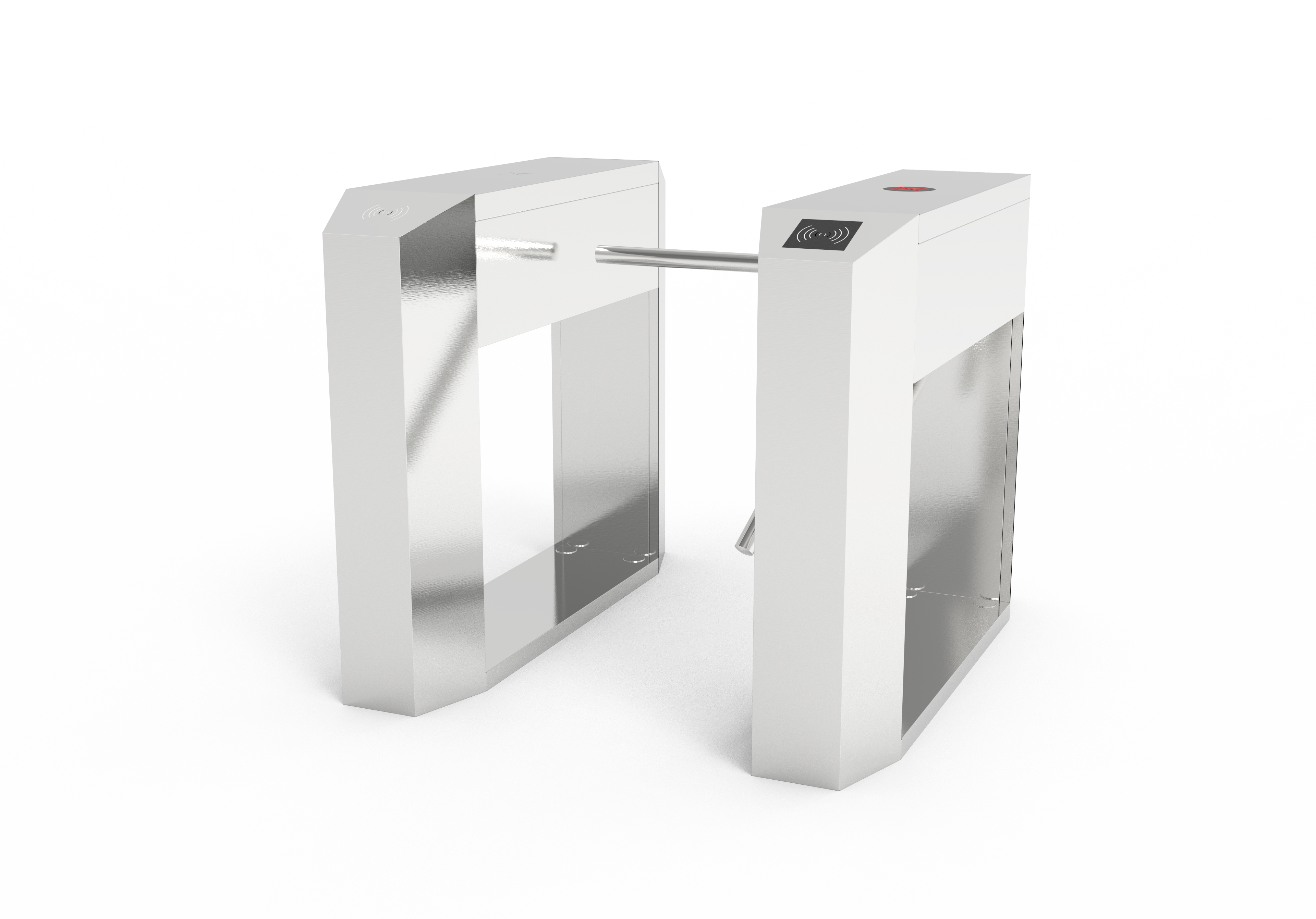

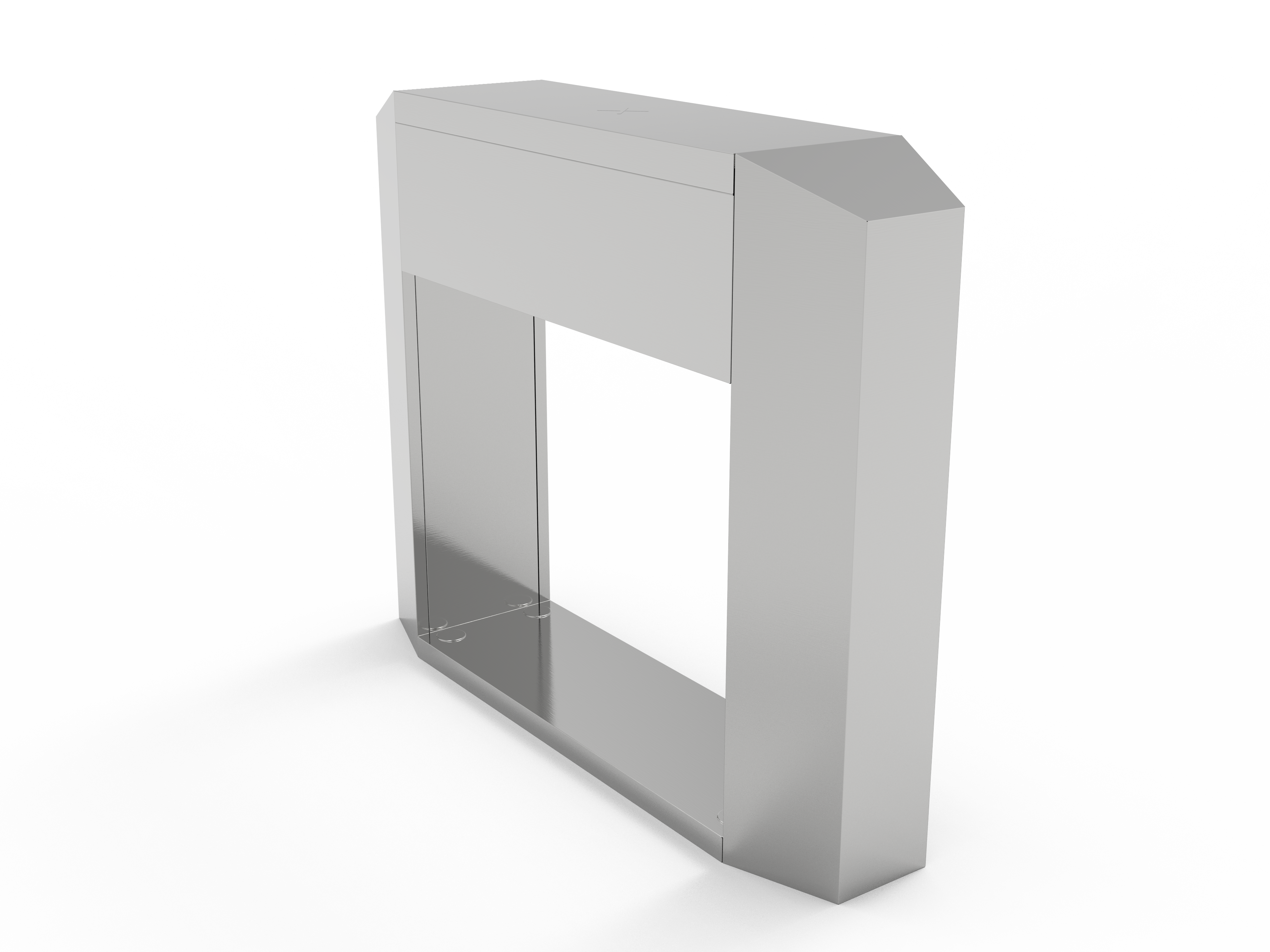

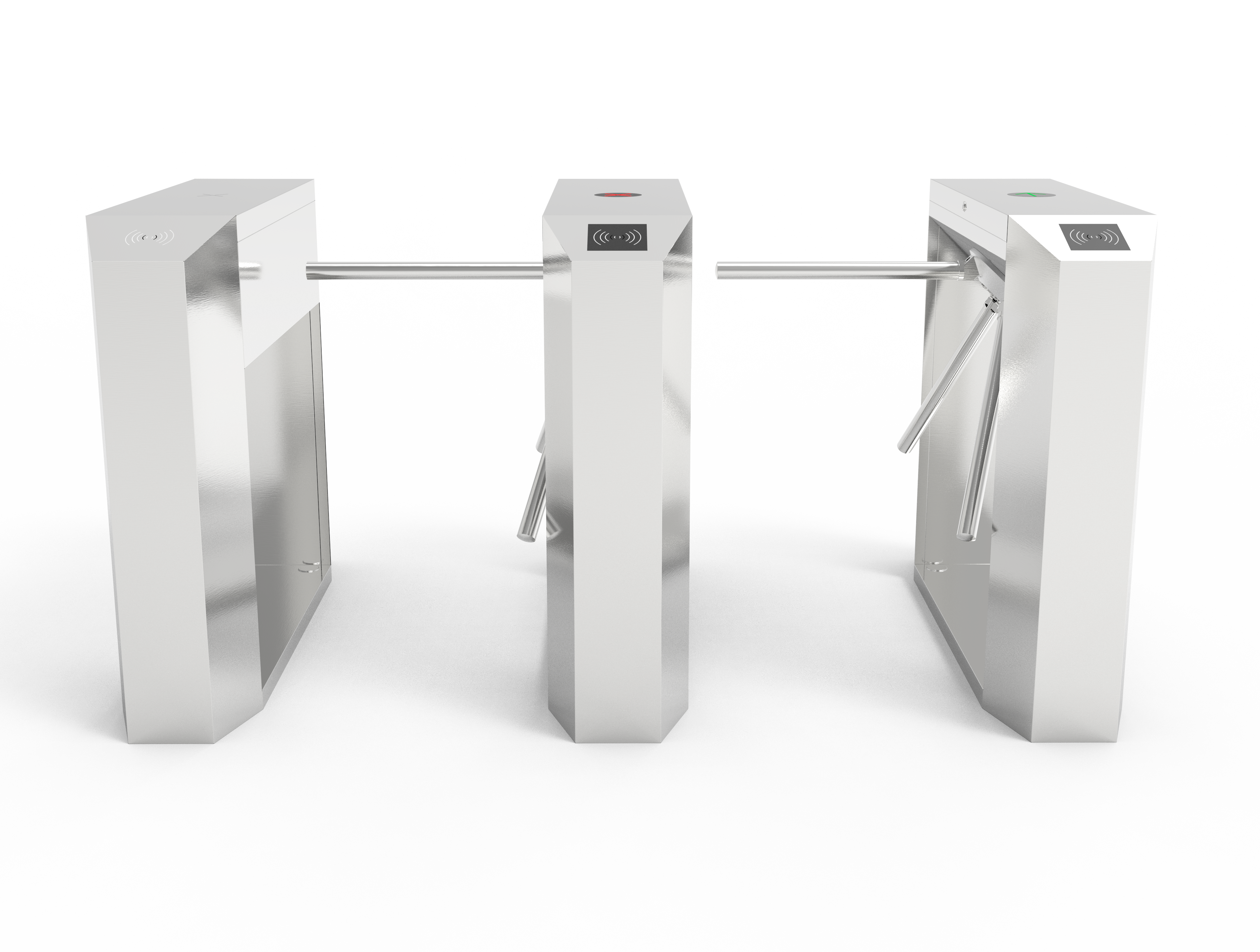

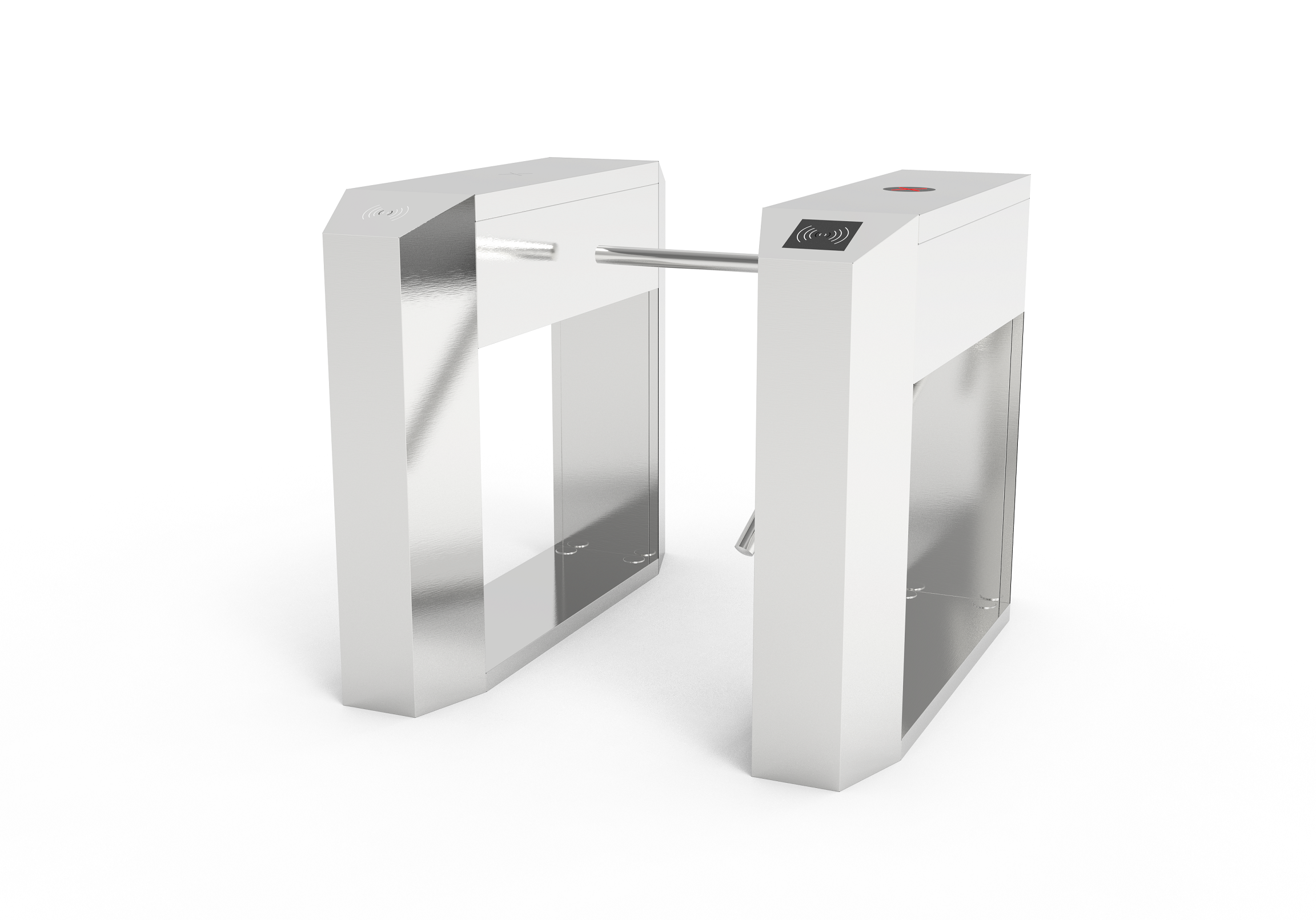

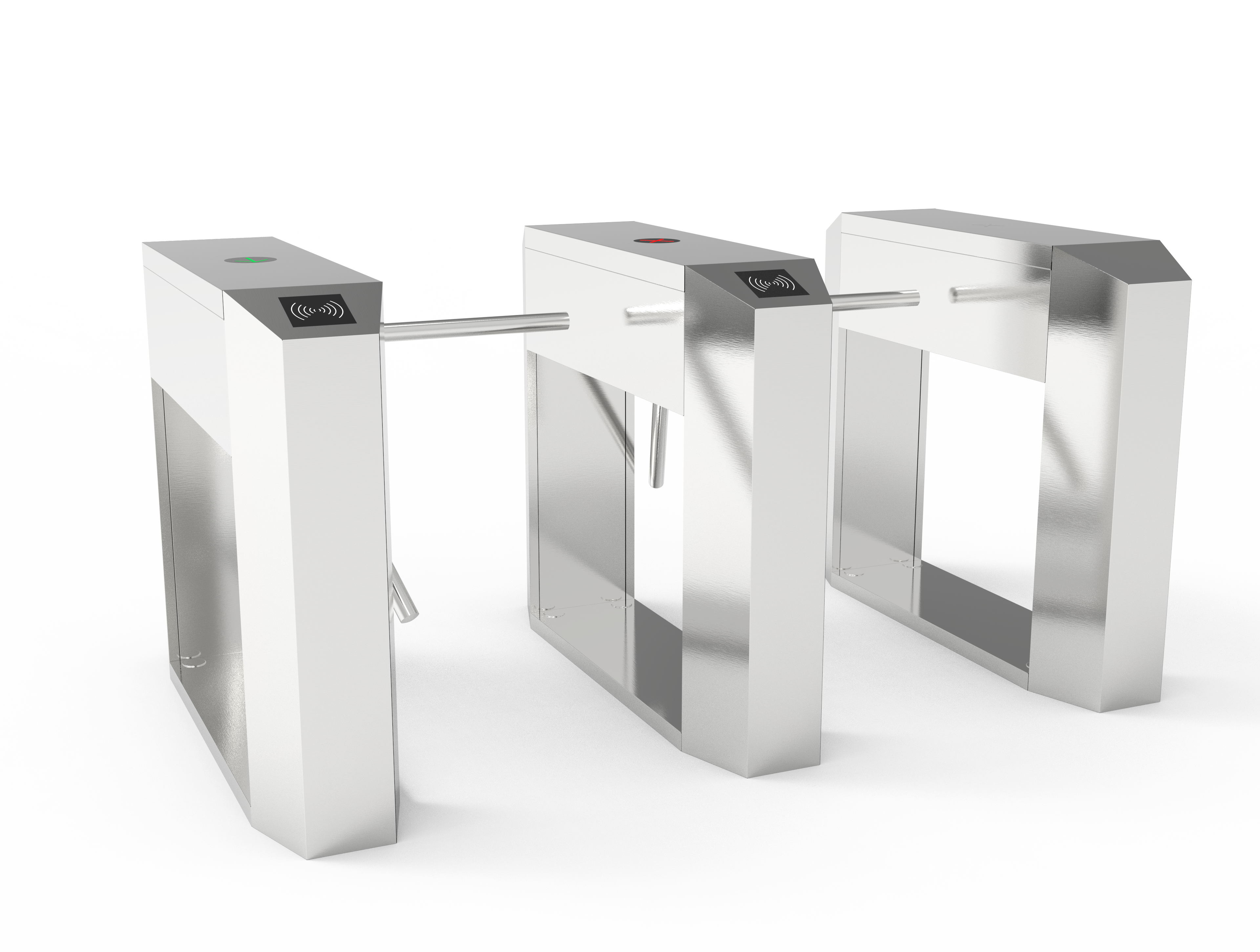

The latest three roller brake product features a box made of 304 stainless steel, which is aesthetically pleasing, rust resistant, and durable. And it adopts standard electrical interfaces for external use, which can integrate card authentication, QR code authentication, facial recognition, etc. on this device, providing a civilized and orderly way for people to enter and exit, while also preventing illegal personnel from entering and leaving. In addition, the system is specially designed with a power-off and pole lowering function that meets fire safety requirements. In case of emergency, it ensures unobstructed passage and facilitates timely evacuation of personnel.

型号 501r01-EE
电源电压 AC100~265V / 50HZ±10%
工作环境温度 -25℃~70℃
相对湿度 ≤90%,防凝露
额定功率 24W
输入接口 继电器开关信号
运行速度 常闭模式≤20次/分钟,常开模式≤30次/分钟
红外对射
安全模式 闸杆断电自动落杆,通电手抬上杆
平均寿命 ≥300万次
通道宽度 标准通道550mm
闸杆材质 不锈钢
产品尺寸 长1200mm x宽280mm x高980 mm
闸开关时间 0.5~60秒,可调
工作环境 室外
