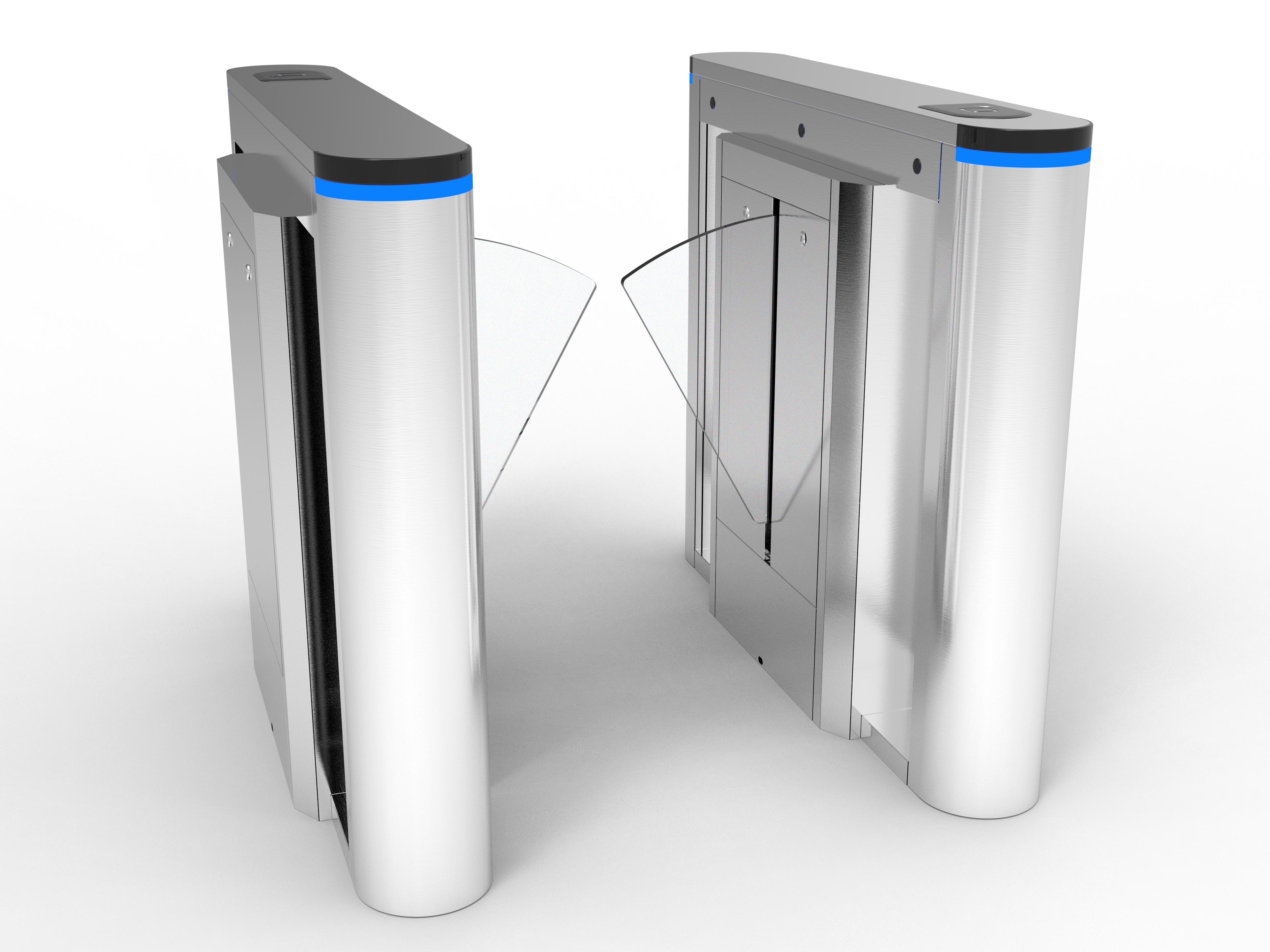

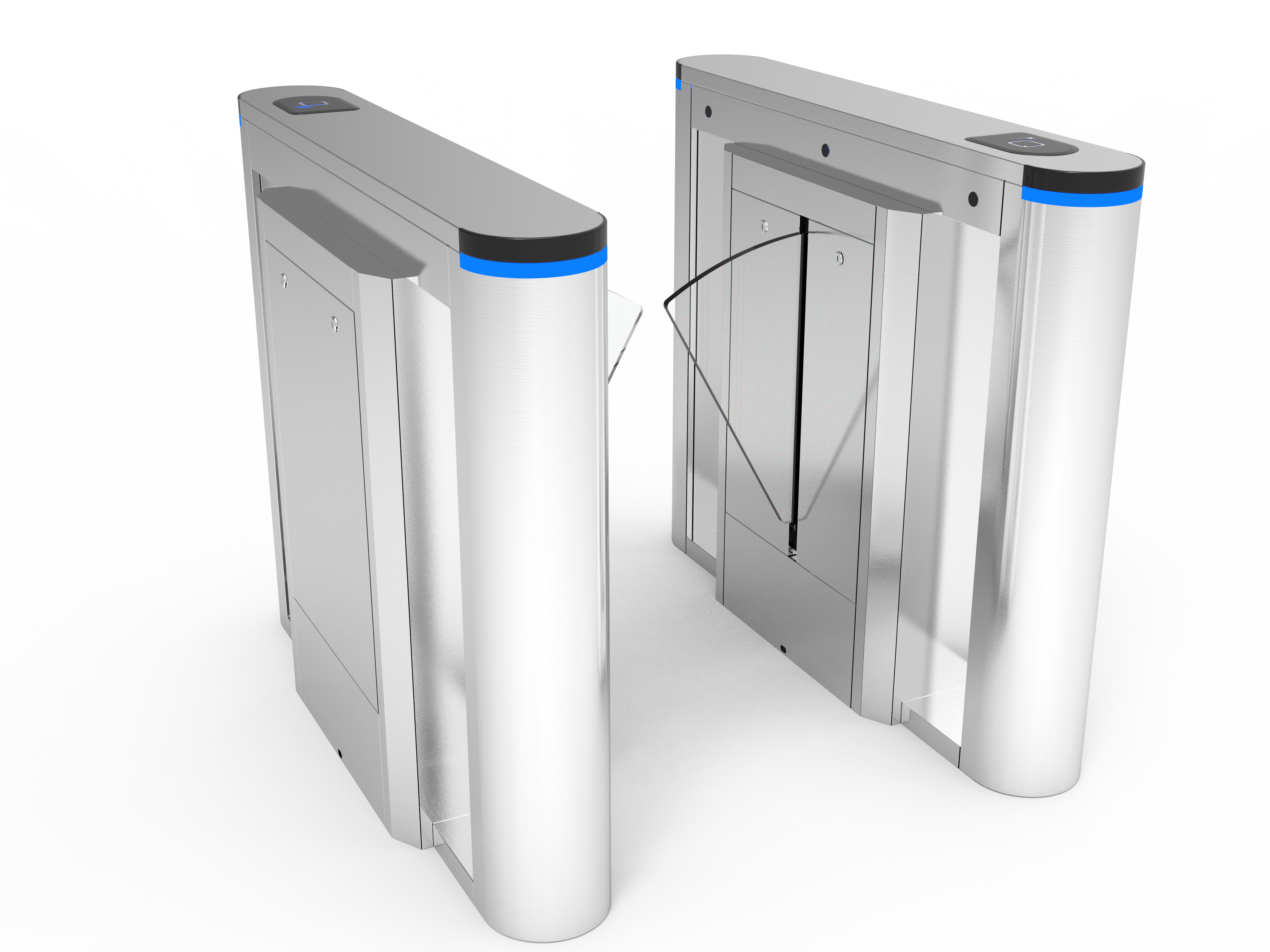

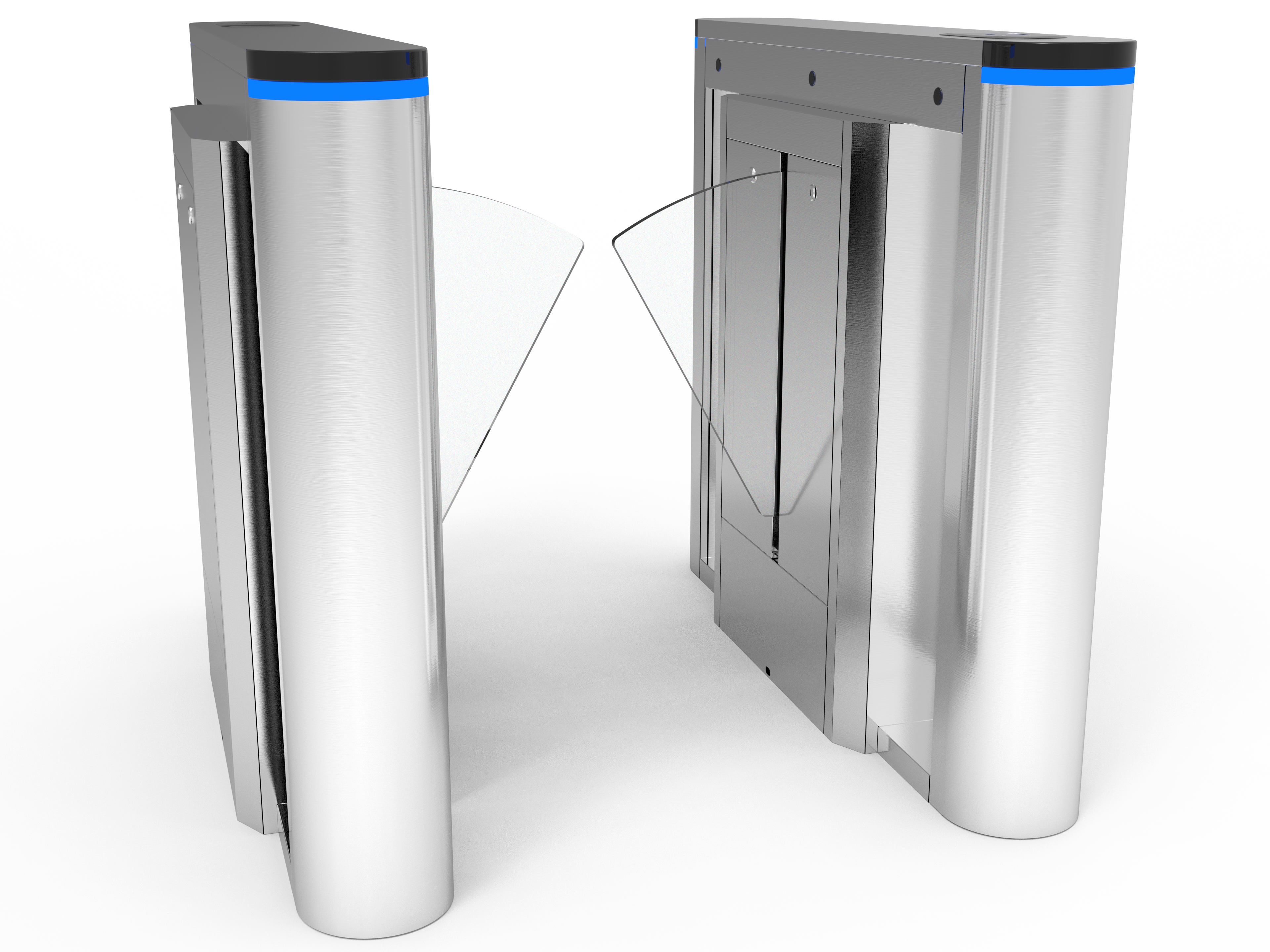

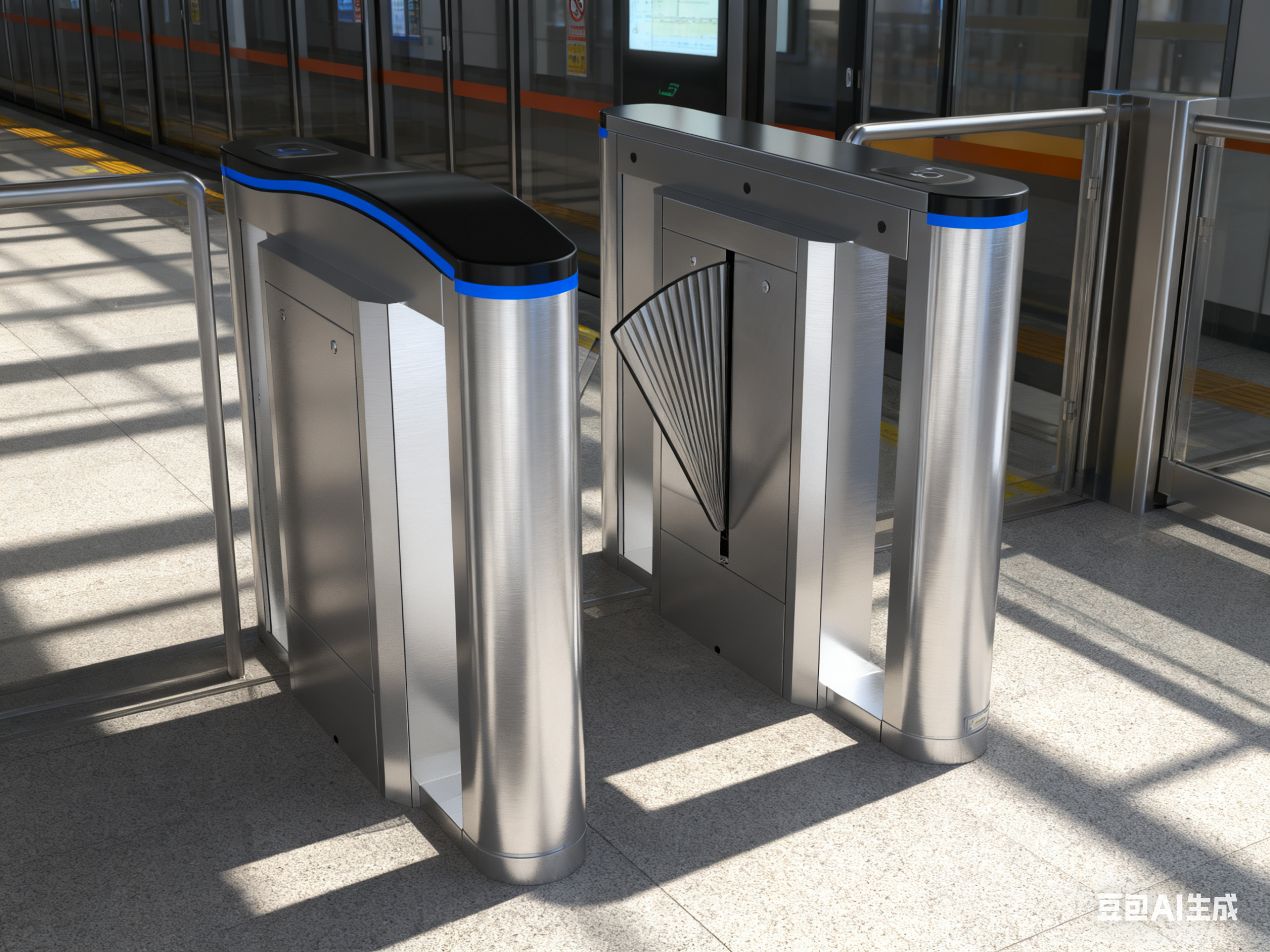

(502W06-EE)翼闸参数说明书The latest wing brake product is made of 304 stainless steel, with a beautiful and elegant appearance, rust prevention, and durability. And it adopts standard electrical interfaces for external use, which can integrate card authentication, QR code authentication, facial recognition, etc. on this device, providing a civilized and orderly way for people to enter and exit, while also preventing illegal personnel from entering and leaving. In addition, the system is specially designed with a power-off and opening function that meets fire safety requirements. In case of emergency, it ensures smooth passage and facilitates timely evacuation of personnel.

分类:
型号 502W06-EE
电源电压 AC100~265V / 50HZ±10%
工作环境温度 -15℃~70℃
相对湿度 ≤90%,防凝露
额定功率 24W
输入接口 继电器开关信号
运行速度 常闭模式≤35次/分钟,常开模式≤45次/分钟
红外对射 3~12对红外可选(标准3对)
安全模式 闸翼断电自动打开,通电自动闭合
平均寿命 ≥300万次
通道宽度 标准通道550mm
门体材质 红/蓝/透明翼板
产品尺寸 长1200mm x宽185mm x高980mm
闸开关时间 0.5~60秒,可调
工作环境 室外
