Overhead Central Shaft Opener

Key Features / Benefits

• Central Shaft Design – Hidden installation at the gate pivot for a clean, modern appearance.

• Stable Output – 40 Nm torque ensures smooth and stable door opening.

• All-Weather Operation – Works reliably from -35°C to +85°C in extreme environments.

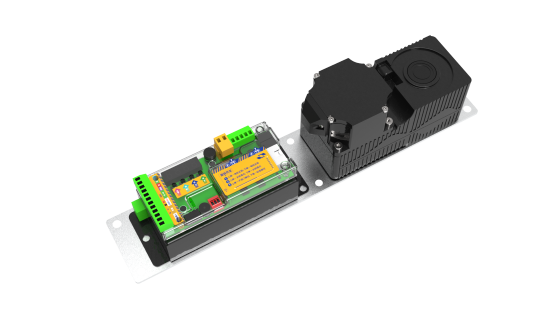

• Compact & Integrated – Motor, gearbox, and control unit in one compact design for easy installation.

• Silent & Durable – Optimized gear system with 20Cr+ carburized gears for long service life.

• Smart Control – Compatible with remote controls (433 MHz) and smart system integration.

• Energy Efficient – Low power consumption (40W) with reliable performance.

Technical Specifications

• Motor Type: Brushless DC motor

• Rated Power: 40W

• Torque Output: 40 Nm

• Speed: 1800 RPM

• Gear Material: 20Cr+ carburized

• Voltage: 24V DC

• Operating Temp.: -35°C ~ +85°C

• Remote Control: 433 MHz wireless, range ≤100m

• Dimensions: 345 × 65 × 80 mm

Applications

• Villa swing gates with hidden installation needs

• Courtyard and residential community gates

• Banks, offices, and institutional entrances

• Heavy-duty pivot-style swing doors

Certifications & Compliance

• CE, FCC, RoHS (on request)

• ISO9001 Quality Management Certified

• Patented central shaft structure design

• National High-Tech Enterprise Recognition

👉 The SafeTS Overhead Central Shaft Opener is the ideal solution for pivot-style gates requiring hidden installation, combining strength, safety, and aesthetics.
